Does not break: about a tonne of galvanised steel
The robustness comes from the frame: all galvanised steel, carrying vehicles up to 5,000 kg.
100% galvanised · ≈1 t · 5,000 kg
The car turntable for your showroom.
Patented 360° rotating platform, about a tonne of galvanised steel. Installs in 2.5 hours, comes down in 40 minutes, zero damage to the floor.
References · Since 2014 · 800+ platforms · 12 countries
Turning in these showrooms.
London
DAP Cars · United Kingdom
United Kingdom
Türkiye
France
Germany
Türkiye- London
- DAP Cars · United Kingdom
- United Kingdom
- Türkiye
- France
- Germany
- Türkiye
Türkiye
Türkiye
Launch
Event
Türkiye
Türkiye
Türkiye- Türkiye
- Türkiye
- Launch
- Event
- Türkiye
- Türkiye
- Türkiye
From our own footage — no set, no render
Businesses in the footage

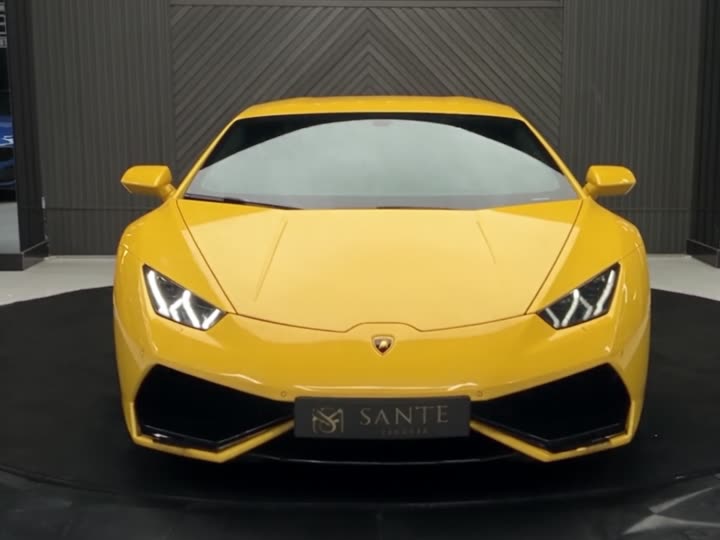

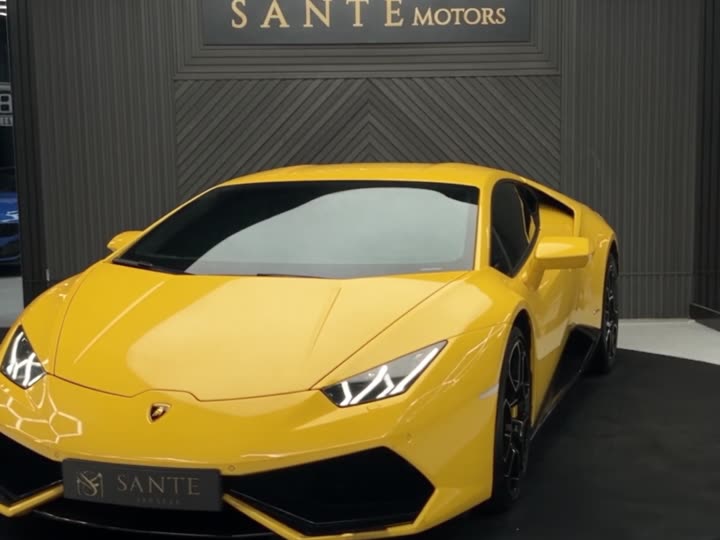

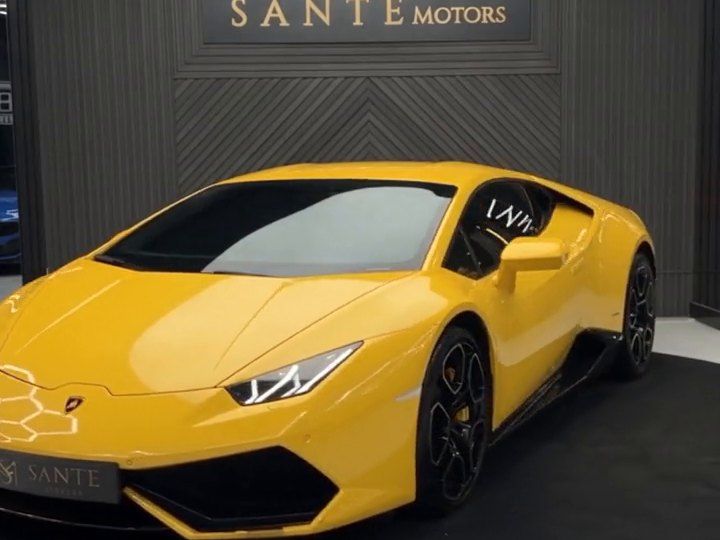

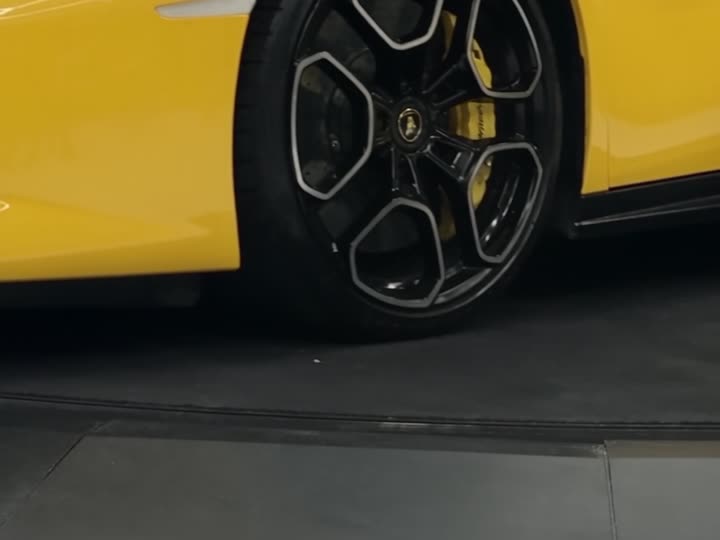

- Sante Motors
- Platin Motors
- S&S Motors
- Yeniköy Motors
- İnce Autocentrum
- MLH Motors
- Yılmaz Plaza

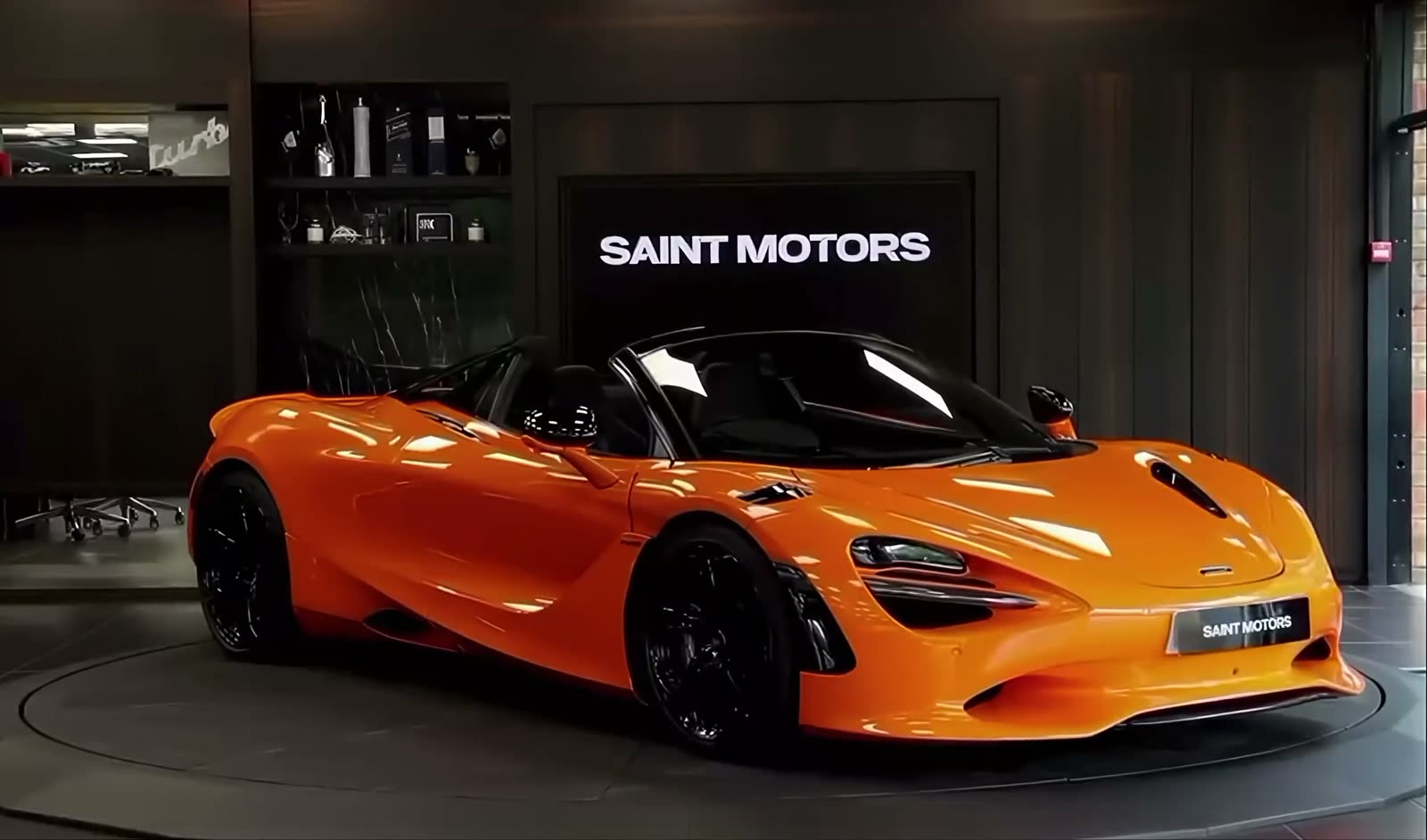

- Saint Motors
- Volvo Selekt
- Aktoy · Xchange by Toyota
- TOGG launch
2014
patented · Düzce
800+
platforms sold
12
countries
1 working day
support reply
Why YılPlat · From inside automotive retail
Buy once. Use for decades.
The turntables on the market did not meet a showroom's durability standard, so we engineered and patented our own: 800+ installations since 2014.
Assembles like IKEA furniture
No pit, no anchors, zero damage to the floor. Leaving a leased showroom, it comes down and goes up again at the next branch.
2.5 h to install · 40 min to dismantle
Built to run for decades.
Nothing is welded shut; decades of service on part replacement alone.
Every part replaceable · zero scrap
Patented · since 2014 · 800+ sold
Designed, built and patented in Düzce; every platform ships with twelve years of R&D behind it.
Patented · Düzce · 12 years
Engineered for showrooms. Built to last.
No pit. No anchors. No permanent construction.
Compare turntable systems →The product · Technical specifications
Why doesn't it break? Look underneath.

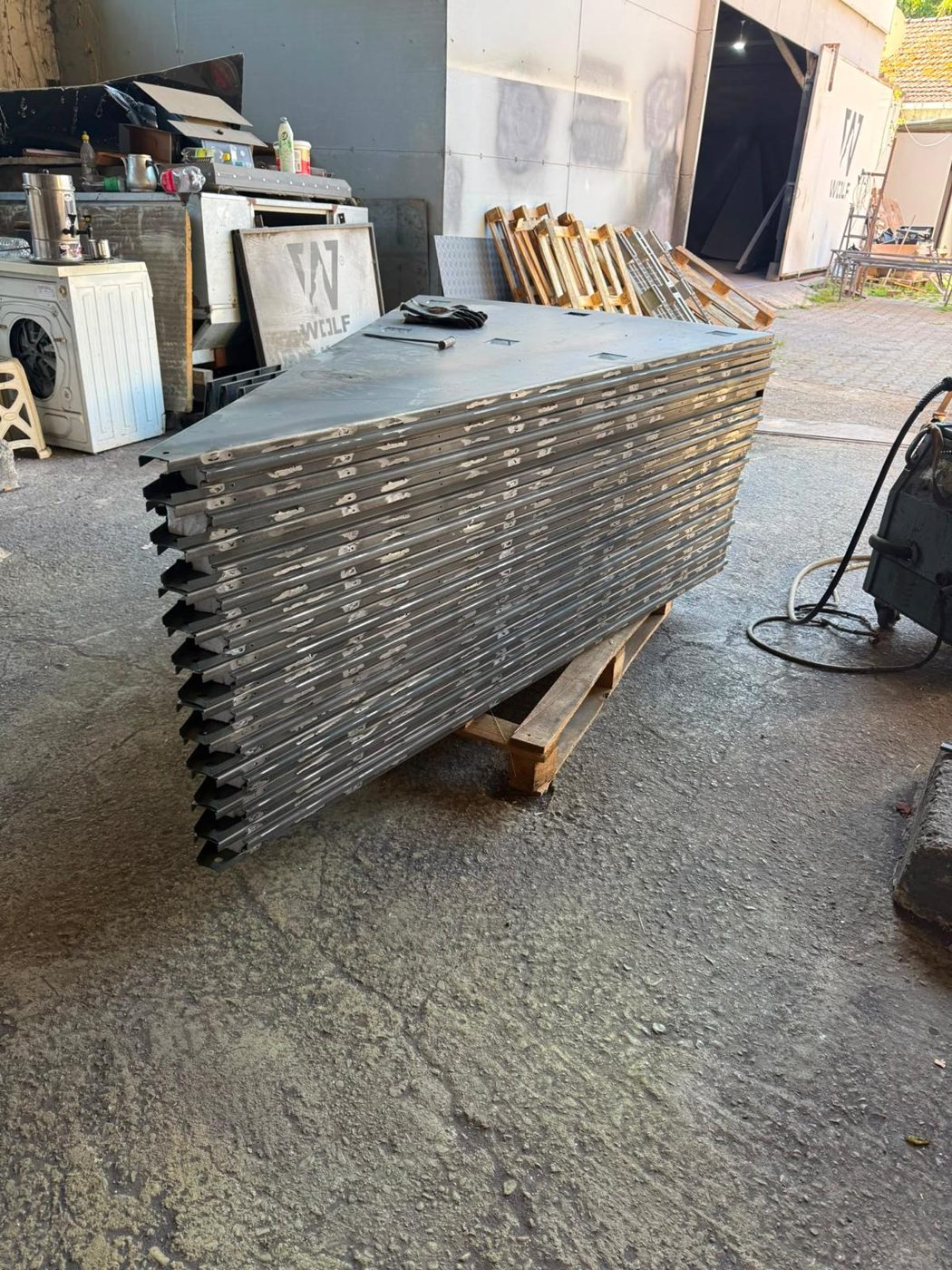

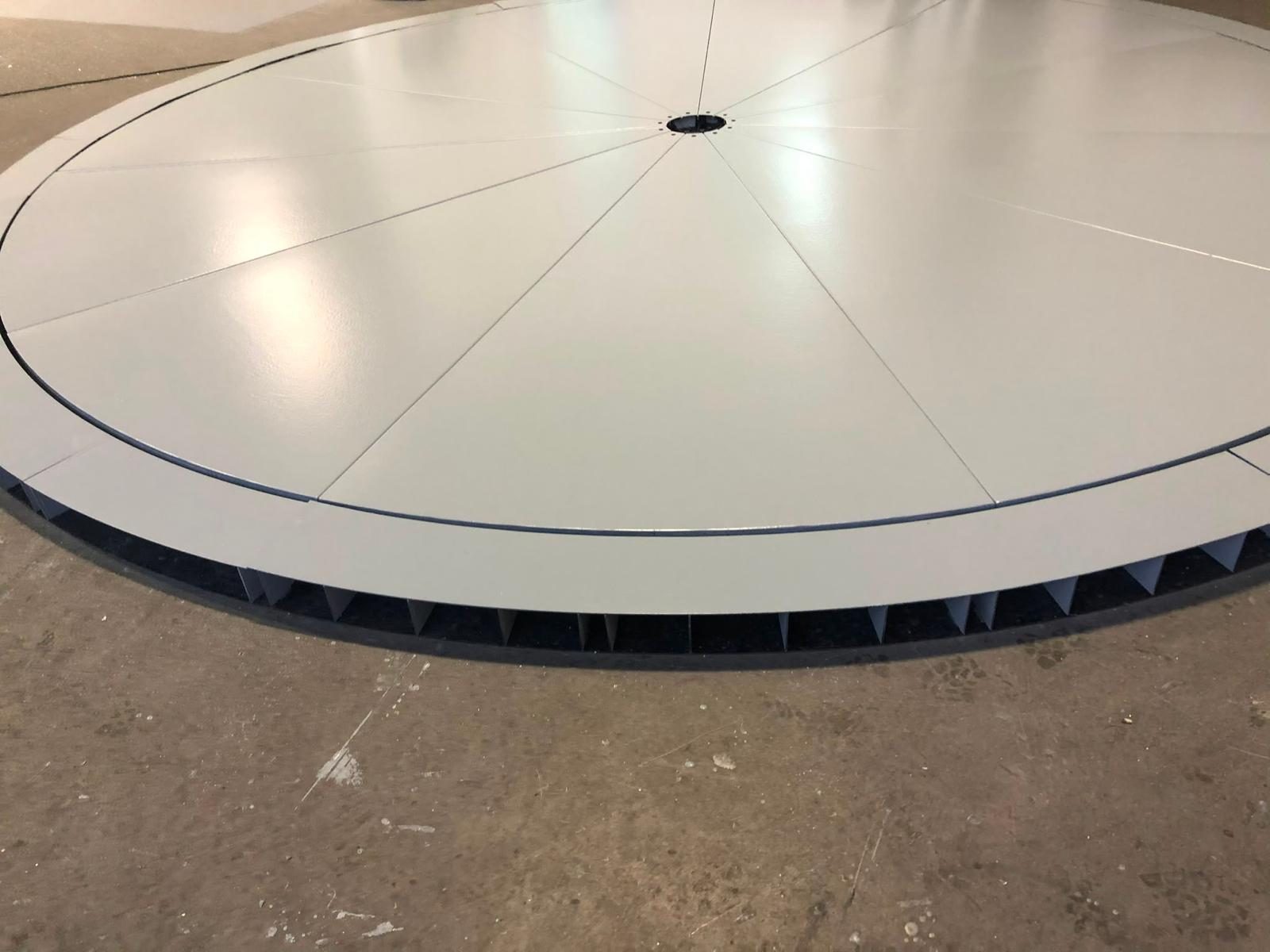

About a tonne of galvanised steel, 11 triangular panels on 66 wheels and 4 motors turn a 5,000 kg vehicle 8.5 cm above the floor.
- 11
- triangular panels
- 66
- wheels · 6 per panel
- 4
- motors · 24 V
- ≈1 t
- galvanised steel
- 5,000 kg
- load rating
- 8.5 cm
- tall · on the floor, not in it
Dimensions
Top view · to scale
Side elevation · to scale
Technical specifications
- Rotating disc
- Ø 4.3 m
- Diameter with ramps
- Ø 5.0 m
- Height
- 8.5 cm
- Floor area
- 6 × 6 m · ≥ 3 m to walls
- Load rating
- 5,000 kg
- Load-bearing frame
- ≈ 1 t galvanised steel
- Deck
- 11 triangular panels · 66 wheels
- Drive
- 4 × 24 V motors, cross layout
- Control
- LCD panel 220 V · 2 Bluetooth remotes (8 m)
- Install / dismantle
- 2 people, ≈ 2.5 h / 40 min
- Power cut
- Turns by hand
- Certificates
- CE · ISO 9001 · patented
Installation · Two people, hand tools
Without touching the floor. In 2.5 hours.
- 01
No pit, no anchors, no welding
It sits on your existing floor; when it comes off, the floor is as it was. Total height 8.5 cm.
- 02
Like IKEA furniture

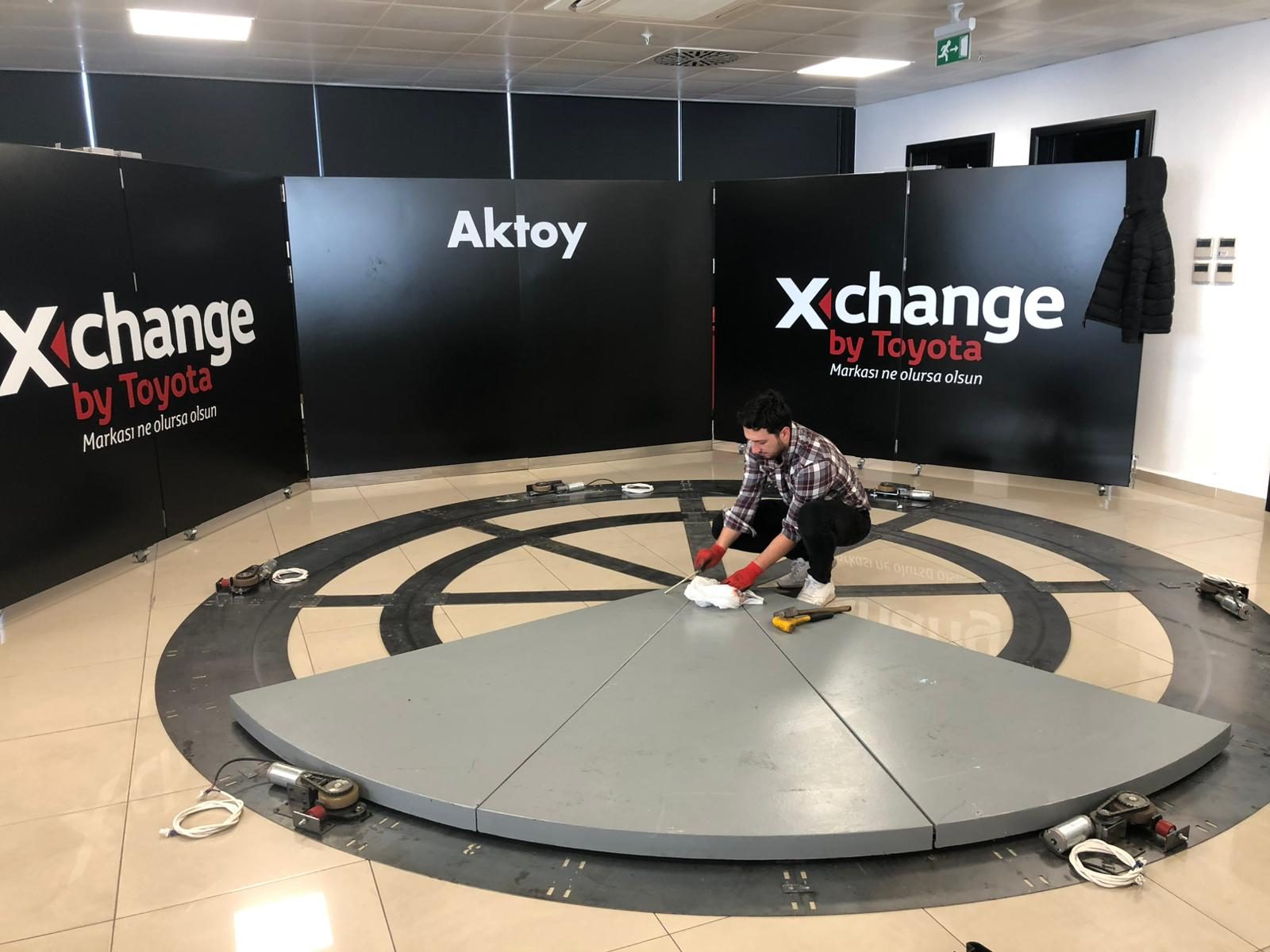

Hub, 8 arms, 11 panels, ramps. All joined with hand tools.
- 03
Down in 40 minutes, off to the next site

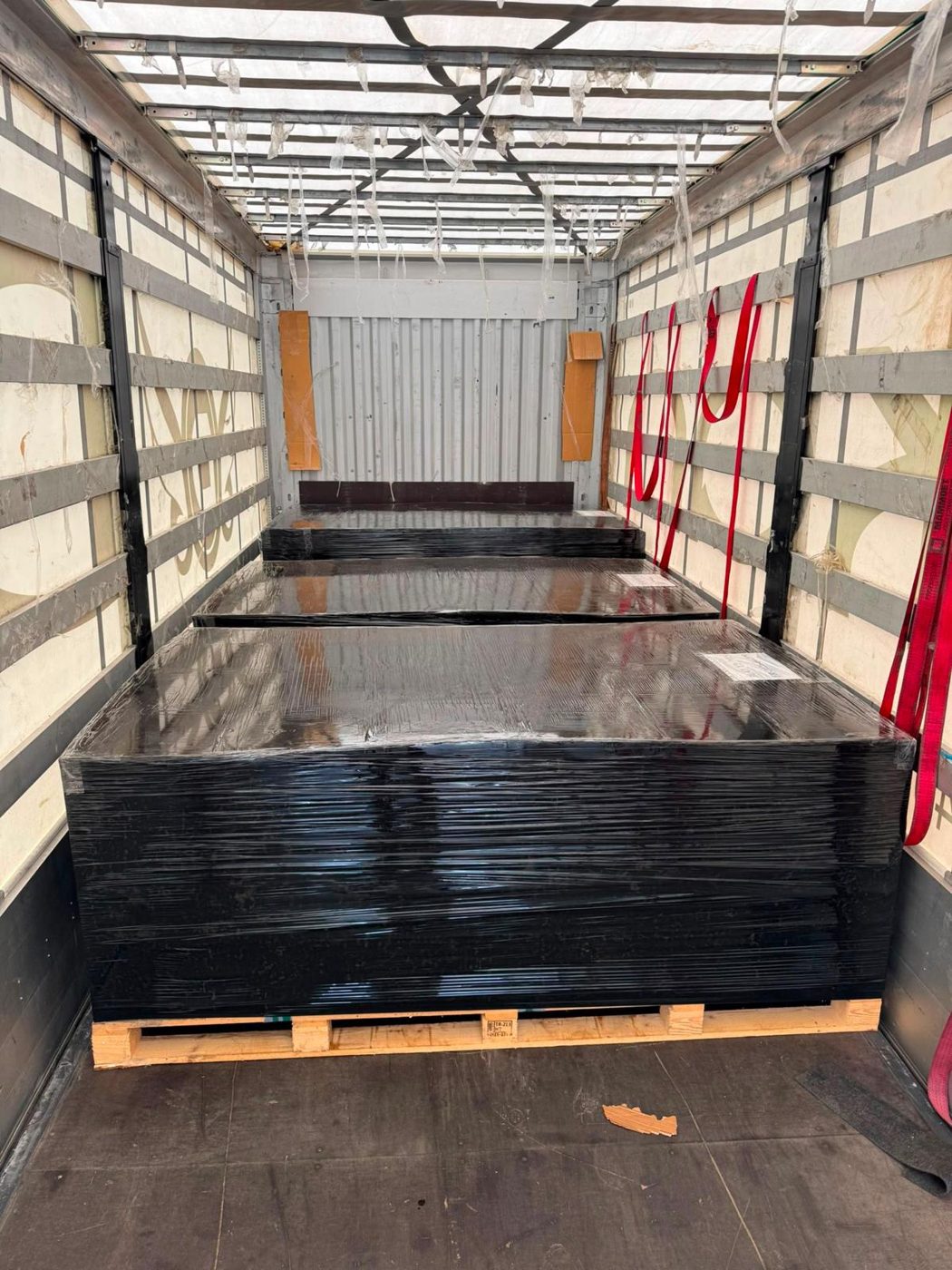

It goes back in its crate and is rebuilt the same way at the next branch or event.
How is it installed?
Your own two people install it from the illustrated manual; we stay with you on a video call throughout.
Where it is used · Four settings, one platform
From the showroom floor to the launch stage.
From the showroom to the studio, the launch stage and the private garage, the same platform; all real installations.

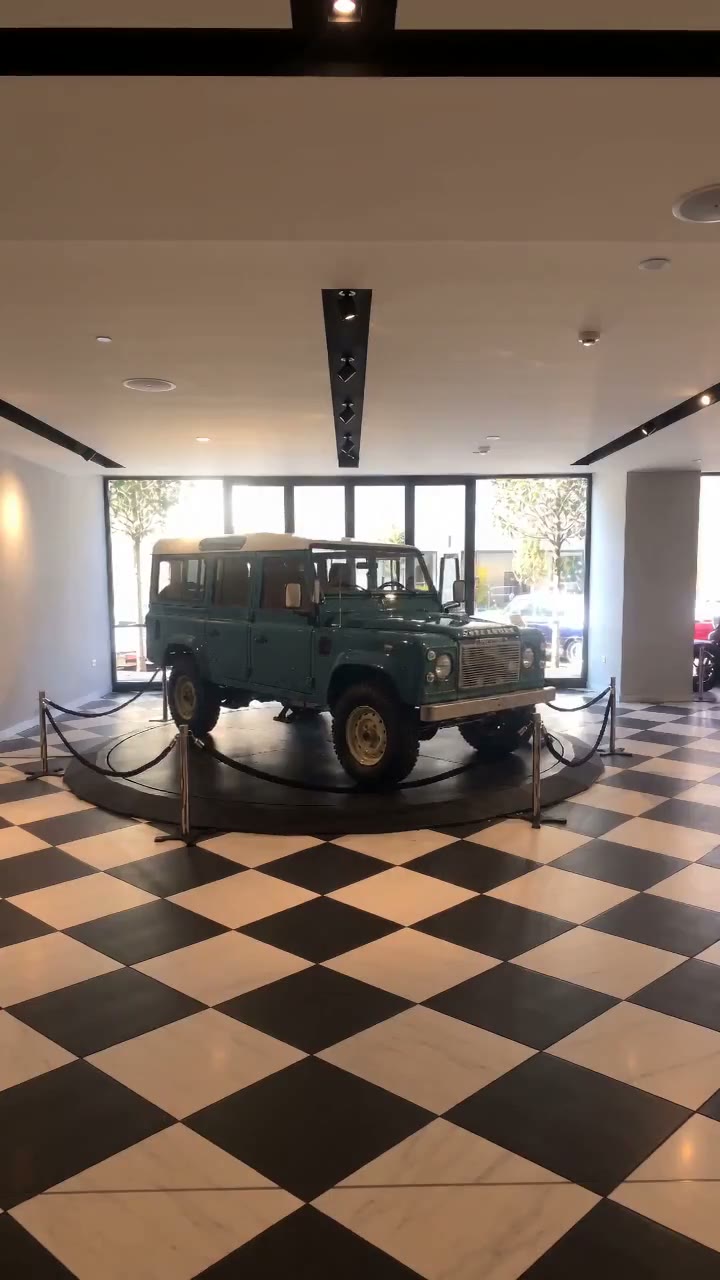

Showroom & dealership
The customer sees every angle without walking round. Any model up to 5,000 kg.

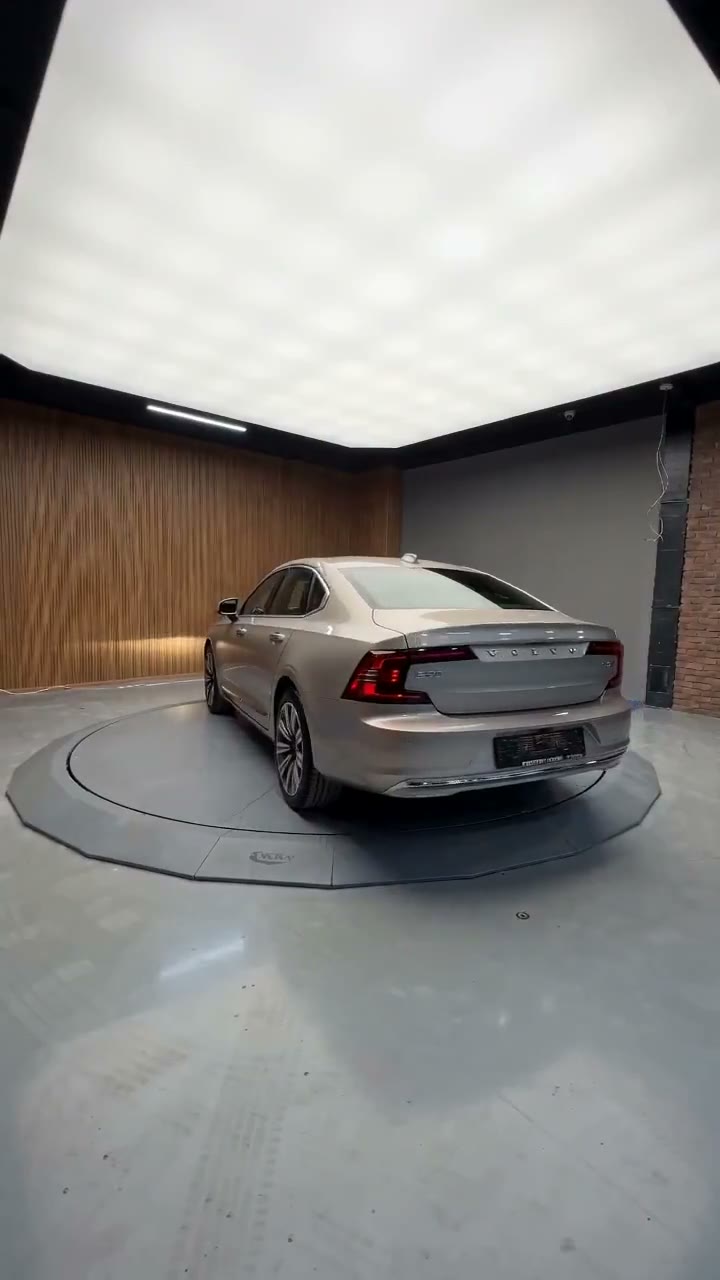

360° photo studio
Nudge the car round from the remote without leaving the camera. 8 m Bluetooth range.
Events & launches

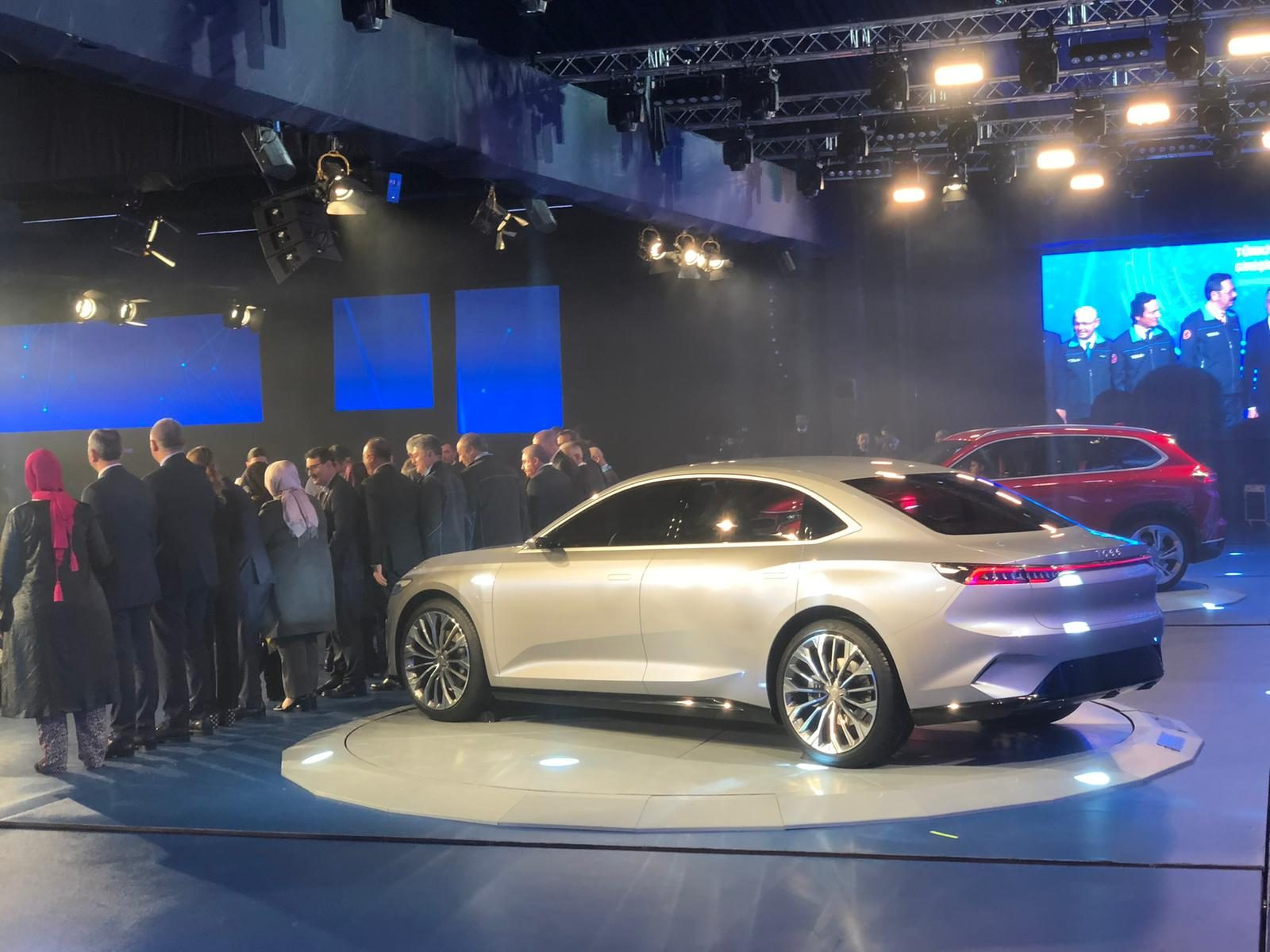

It was on stage at the TOGG launch. Down in 40 minutes and on to the next one.
Private garage & collection
No pit, 8.5 cm tall; your garage stays exactly as it is.
Packages · Bespoke · Atelier
What you get — and what the price covers.
What the price buys: about a tonne of galvanised steel, a patented demountable build, decades on part replacement alone.
Motorised · made for your brand
Recommended packageBespoke
£9,750
was £13,000 · UK launch price · ex. VAT
- 11 panels · 66 wheels · ≈1 t galvanised steel frame
- 4 × 24 V motors, LCD panel (220 V), 2 Bluetooth remotes — 8 m range
- Custom RAL or Pantone colour
- Logo application (laser etching, inlay, full wrap)
- LED edge lighting option
- 2-year warranty
Project-based
Atelier
On consultation
- Up to 8 m diameter, custom load capacity
- Wood, leather or stone inlay
- DMX-controlled lighting
- Recessed (in-floor) option
- 3-year warranty
What's included
Delivery
Included in Türkiye; UK and export quoted by location · ex. VAT.
Installation
Your own two people install it in about 2.5 hours; we provide the illustrated manual and video-call support.
Delivery, warranty, service
After delivery: warranty, spare parts and service from one team.
Standard finishes ship within 20 working days of order confirmation.
2-year manufacturer's warranty
Atelier projects carry three years.
Every part replaced on its own
Fully demountable: the rest of the platform stays put, and it runs for decades on part replacement alone.
CE · ISO 9001
CE documents ship with every platform; production is ISO 9001-certified.
Support within 1 working day
Send a photo of the step you are on; our technical team answers.
Message on WhatsAppQuestions & answers · Before you decide
What dealers ask first.
Four here; the full list is on the FAQ page.
All questions and answers →What makes YılPlat different?
Patented, fully demountable, about 1 tonne of galvanised steel. 11 triangular panels run on 66 wheels; 4 motors turn a 5,000 kg vehicle. A worn part is replaced alone and it works for decades. 800+ installations since 2014.
Does it work on any floor?
Yes. Parquet, marble, granite, tile, epoxy, concrete: it sits on your existing floor with no pit, anchors, welding or renovation. About 1 tonne of galvanised steel spreads the load over 66 wheels; the floor is never marked.
How is it installed, and how long does it take?
Two people from your own team, hand tools, about 2.5 hours; we provide the illustrated manual and video-call support throughout. You need a level 6 × 6 m floor and 220 V for the control panel.
Can it be dismantled and moved to another venue?
Yes. The demountable system — hub, 8 arms, 11 panels — comes apart with hand tools in 40 minutes, goes into its crate and is rebuilt the same way at the new venue: decisive for leased showrooms and event spaces.
Order
Buy once. Use for decades.
Pick the package and colour; get confirmation and a pro-forma within one working day. Questions? Message us on WhatsApp — same-day reply.
